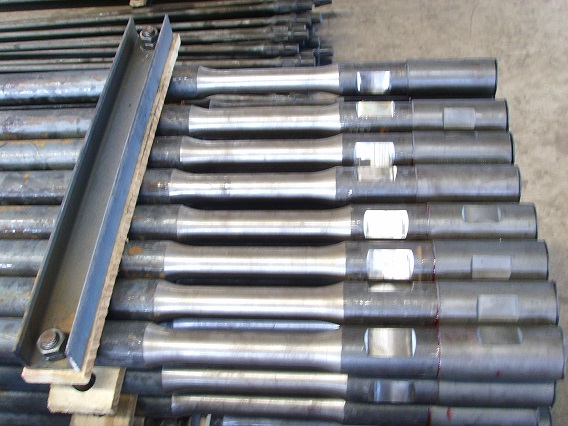

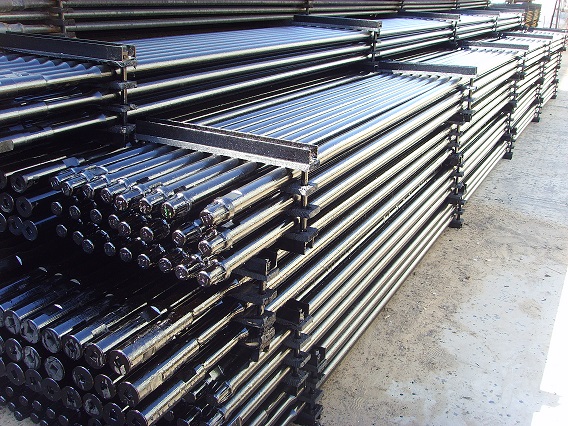

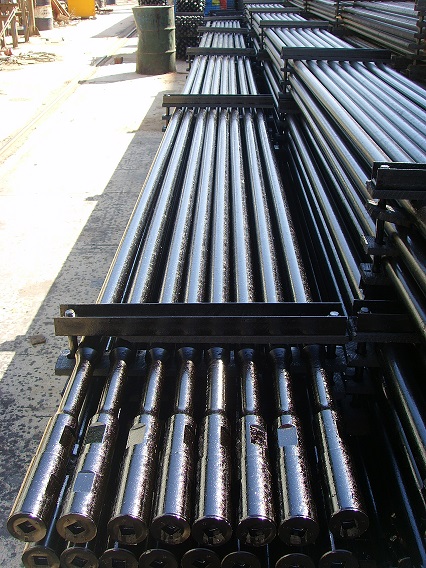

1.Specifically designed to withstand the high torque levels experienced in Progressing Cavity Pump applications.
2.Furnished with modified pins to maximize their torque capacity.
3.Modified pins provide a minimum 50% increase in torque over conventional API thread connections.
4.Available in 1” (25.40mm), 1-1/4” (31.75mm) and 1-1/2” (38.10mm) body diameter.
5. Full length normalized to relieve residual stresses, air quenched and tempered to refine and homogenize the grain structure.
Main Mechanical Properties
|
Class |
Tensile Rm MPa |
Yield Rel MPa |
Elongation A 200mm % |
Reduction of Area Z % |
Airy impact energy（Type）J |
|
D |
795～965 |
≥590 |
≥10 |
≥50 |
≥60 |
|
H |
965～1195 |
≥795 |
≥10 |
≥45 |
≥60 |
Specifications:
|
Nominal Size in |
O.D. mm |
End Size in |
Length(mm) |
|
|
Drive Rod |
Pony Rod |
|||
|
1 |
25.40 |
7/8 |
7620 8000 9140 |
600, 1200 1800, 2400 3000, 3600 |
|
11/8 |
28.58 |
1 |
||
|
11/4 |
31.80 |
1 |
||
|
11/2 |
38.10 |
11/8 |
||
